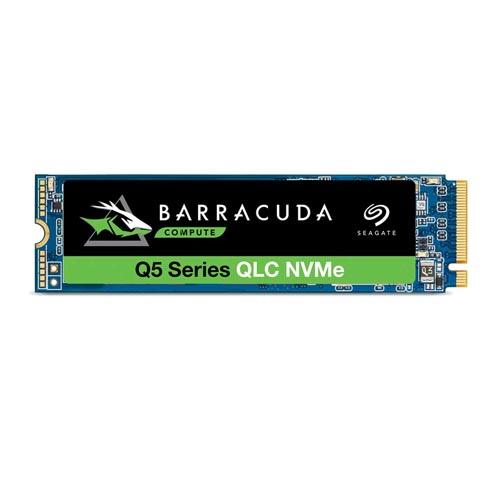

Seagate BarraCuda Q5 M.2 2280 500GB PCIe Gen3 x4 NVMe SSD ZP500CV30001
5,500 3,817 Add to cart

Seagate BarraCuda Q5 M.2 2280 500GB PCIe Gen3 x4 NVMe SSD ZP500CV30001



Best-Fit Applications

  • Desktop upgrades
  • Laptop upgrades
  • Workstation upgrades
  • HDD or SSD swap-out upgrades
Found this product at a lower price?

Seagate BarraCuda Q5 M.2 2280 500GB PCIe Gen3 x4 NVMe SSD ZP500CV30001

Overview :

Upgrade your PC with the Seagate® BarraCuda™ Q5 NVMe SSD and unleash performance speeds up to 50× faster than traditional HDDs. Designed with the latest 3D QLC NAND technology, BarraCuda Q5’s slim M.2 2280 form factor provides optimal compatibility and easy plug-and-play installation.

  • Upgrade to cost-effective SSD speeds with next-gen 3D QLC NAND
  • Leverage NVMe SSD speeds that are up to 50× faster than traditional hard drives
  • Harness high sequential read/write speeds (up to 2,400/1,800 MB/s) for more responsive downloads, installs and multitasking
  • Get easy installation and upgrades with a slim M.2 2280 NVMe form factor
  • Extend battery life with low active power requirements of up to 3.2W
  • Rely on a robust 3-year limited warranty and 1.8M-hours MTBF
  • Enjoy added peace of mind with 1-year Rescue Data Recovery Services Benefit from long-term durability with 531 TB total bytes written (TBW)
  • Migrate and clone data from old drives with ease using free Seagate DiscWizard™ software tool
  • Monitor SSD performance, health, and firmware updates with free Seagate SeaTools™ SSD software tool

Specification :

Standard Model ZP500CV30001
Interface PCIe Gen3 ×4 NVMe 1.3
NAND Flash Memory 3D QLC
Form Factor M.2 2280-S2
Sequential Read (Max, MB/s), 128 KB1 2,300
Sequential Write (Max, MB/s), 128 KB1 900
Total Bytes Written (TB) 119
Mean Time Between Failures (MTBF, hours) 18,00,000
Warranty, Limited (years) 3
Rescue Data Recovery Services (years) 1
Power Management
Active Power, Average (W) 2.2
Idle Power PS3, Average (mW) 23
Low Power L1.2 mode (mW) 1.5
Temperature, Operating Internal (°C) 0 to 70
Temperature, Non-operating (°C) –40 to 85
Shock, Non-operating: 0.5 ms (Gs) 1,500
Special Features
S.M.A.R.T. Yes
Halogen-free Yes
RoHS compliance Yes
Height (mm/in, max) 2.15 mm/0.084 in
Width (mm/in, max) 22.00 mm/0.866 in
Depth (mm/in, max) 80.00 mm/3.149 in
Weight (lb/g) 7 g/0.015 lb
