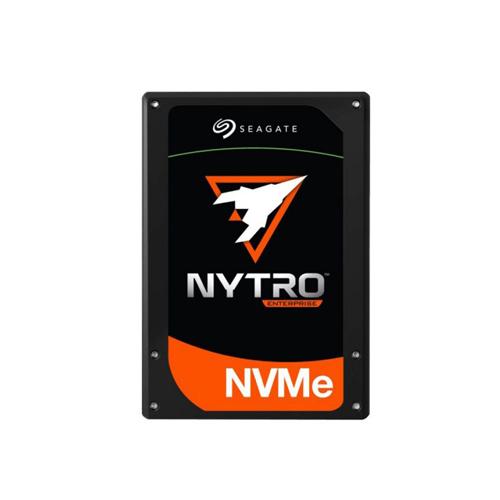

Seagate Nytro 5000 Capacity Optimised Secure SED 960GB 2.5 inch PCIe NVMe XP960LE10012

Best-Fit Applications
Public and private cloud
Hyperscale data centres
Caching and tiering


Out of stock

Email when stock available

Found this product at a lower price?
SKU: XP960LE10012 Category: Tag:

Seagate Nytro 5000 Capacity Optimised Secure SED 960GB 2.5″ PCIe NVMe XP960LE10012

Overview :

The Seagate® Nytro® 5000 NVMe solid state drive (SSD) represents the next generation of enterprise SSDs. Engineered for low power, high performance, and increased storage density in data centres, Nytro 5000 SSD eliminates performance bottlenecks and significantly improves quality of service (QoS).

Overcome Data Bottlenecks and Improve QoS
Nytro 5000 SSD is highly optimised for read-intensive and mixed workloads. Incorporating the PCIe® Gen3 ×4 interface with the NVMe protocol, Nytro 5000 SSD features four times the bandwidth of SATA SSDs, removing data bottlenecks by delivering blistering throughput and IOPS.

Nytro 5000 SSD also features sideband management for monitoring the health of the SSDs without introducing latency or disrupting overall throughput.

Increase Storage Density and Efficiency in Data Centres
The low-power Nytro 5000 SSD is offered in both 2.5-inch and M.2 form factors, enabling more computing using minimal space, energy, and cost. The Nytro 5000 SSD is also extremely scalable and space-optimised to reduce TCO. In addition, the Nytro 5000 SSD with the U.2 connector enables effortless serviceability and maintenance with no downtime requirements, and features hot-swap capability for easy addition, removal, or replacement of SSDs.

Enhance Enterprise Reliability, Data Protection, and Security
By leveraging Seagate’s existing enterprise expertise and manufacturing excellence, Nytro 5000 SSD delivers the highest levels of data integrity, data security, and endurance for critical business applications.

Nytro 5000 SSD includes features for end-to-end data protection, LDPC error correction, and Seagate RAISE technology for solid reliability and endurance. Power-loss data protection helps maintain data integrity in the event of unexpected power interruptions. Seagate Secure™ SelfEncrypting Drive (SED) models support the TCG protocol to help companies keep valuable data secure.

Specification :

Standard ModelXP960LE10002
Seagate Secure™ SED ModelXP960LE10012
InterfacePCIe Gen3 x4 (NVMe)
NAND Flash Type3D cMLC
Form Factor2.5 in × 7 mm
Sequential Read (MB/s) Sustained, 128 KB2,000
Sequential Write (MB/s) Sustained, 128 KB1,200
Random Read (IOPS) Sustained, 4 KB QD642,45,000
Random Write (IOPS) Sustained, 4 KB QD6425,000
Random 70R/30W (IOPS) Sustained, 4KB QD6475,000
Lifetime Endurance (Drive Writes per Day)0.3
Total Bytes Written (TB)525
Non-recoverable Read Errors per Bits Read1 per 10E16
Mean Time Between Failures (MTBF, hours)20,00,000
Limited Warranty (years)5
Power Management
+12 V Max Power (W)12.5
+3.3 V Max Power (W)
Average Read/Write Power (W)9
Height (mm/in, max)7 mm/0.275 in
Height, Component Top (mm/in, max)
Height, Component Bottom (mm/in, max)
Width (mm/in)69.85 mm/2.75 in
Depth (mm/in)100.35 mm/3.951 in
Weight (lb/g)90 g/0.198 lb
Carton Unit Quantity10
Cartons per Pallet / Cartons per Layer40/5
Max Sequential Read




Max Sequential Write

Memory Components


Random Read IOPS

Random Write IOPS

User Type
