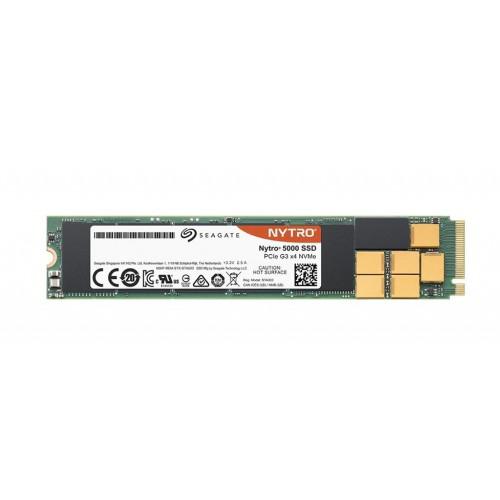

Seagate Nytro 5000 Endurance Optimised Secure SED 1.6TB M.2 PCIe NVMe XP1600HE30012



Best-Fit Applications
Public and private cloud
Hyperscale data centers
Caching and tiering

Out of stock

Notify me when the item is back in stock.

Found this product at a lower price?

Seagate Nytro 5000 Endurance Optimised Secure SED 1.6TB M.2 PCIe NVMe XP1600HE30012

Overview :

The Seagate® Nytro® 5000 NVMe solid state drive (SSD) represents the next generation of enterprise SSDs. Engineered for low power, high performance and increased storage density in data centers, Nytro 5000 SSD eliminates performance bottlenecks and significantly improves quality of service (QoS).

Overcome Data Bottlenecks and Improve QoS
Nytro 5000 NVMe SSD is highly optimized for read-intensive and mixed workloads.
Incorporating the PCIe Gen3 ×4 interface with the NVMe protocol, Nytro 5000 SSD features four times the bandwidth of SATA SSDs, removing data bottlenecks by delivering blistering throughput and IOPS.

Nytro 5000 SSD also features sideband management for monitoring the health of the SSDs without introducing latency or disrupting overall throughput.

Increase Storage Density and Efficiency in Data Centers
The low-power Nytro 5000 SSD is offered in an ultra-small M.2 form factor, enabling more computing while using minimal space, energy and cost. Delivering the best performance in the smallest power envelope, Nytro 5000 SSD is also extremely scalable and spaceoptimized to reduce TCO.

Enhance Enterprise Reliability, Data Protection and Security
By leveraging Seagate’s existing enterprise expertise and manufacturing excellence, Nytro 5000 SSD delivers the highest levels of data integrity, data security and endurance for critical business applications.

Nytro 5000 SSD includes features for end-to-end data protection, LDPC error correction and Seagate RAISE technology for solid reliability and endurance. With power-loss data protection, the Nytro 5000 SSD helps maintain data integrity in the event of unexpected power interruptions. Seagate Secure™ Self-Encrypting Drive (SED) models support the TCG protocol to help companies keep valuable data secure.

Specification :

Capacity 1.6TB
Standard Model XP1600HE30002
Seagate Secure™ SED Model XP1600HE30012
Interface PCIe Gen3 x4 (NVMe)
NAND Flash Type 3D cMLC
Form Factor M.2 22110
Sequential Read (MB/s) Sustained, 128KB 2,000
Sequential Write (MB/s) Sustained, 128KB 1,200
Random Read (IOPS) Sustained, 4KB QD64 2,45,000
Random Write (IOPS) Sustained, 4KB QD64 67,000
Random 70R/30W (IOPS) Sustained, 4KB QD64 1,43,000
Lifetime Endurance (Drive Writes per Day) 1.5
Nonrecoverable Read Errors per Bits Read 1 per 10E16
Mean Time Between Failures (MTBF, hours) 20,00,000
Limited Warranty (years) 5
Power Management
+12V Max Power (W) 8.25
Average Read/Write Power (W) 7
Component Max Height, Top (mm) 2
Component Max Height, Bottom (mm) 1.5
Width (mm) 22
Length (mm) 110
Weight (g) 14
Carton Unit Quantity 10
Cartons per Pallet/Cartons per Layer 56/8
