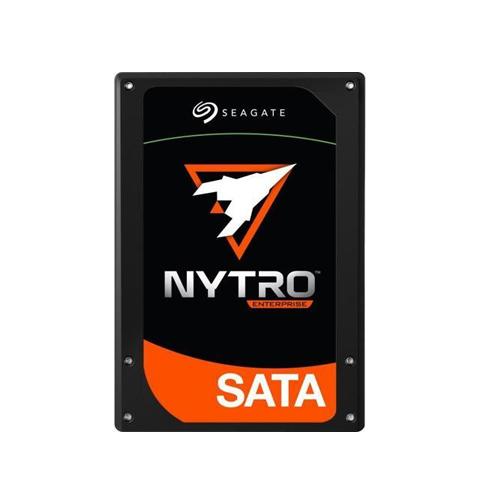

Seagate Nytro 1551 480 GB Mainstream Endurance Enterprise SSD XA480ME10063

Overview :

The Seagate® Nytro® 1000 SATA SSD Series is a cost-effective, enterprise-grade solution for data centre and cloud server applications. It is designed to deliver high, sustained, and consistent performance for improved QoS and enhanced user experience.

SSDs with the SATA storage interface meet the high performance and reliability requirements without disrupting legacy storage infrastructures or involving additional investments in software and hardware.

Optimised for Performance, Integration, and Cost
Boost the performance of applications that require faster random access performance
Maintain fast, consistent performance for read-intensive and mixed workloads
Take advantage of easy deployment and more processing power without investment in new hardware
Require less energy to run 24×7, and save on cooling and overall energy cost

Wide Range of Storage and Security Options
Receive endurance, security, and capacity options for enterprise applications
Choose the capacity and endurance to fit a range of application and workload needs
Achieve peace of mind through Seagate Secure™ data protection

Enterprise-Grade Feature Set
Maintain high data integrity in the event of unexpected power loss
Leverage Seagate’s reliability and system compatibility test infrastructure
Attain end-to-end data protection with Seagate SHIELD™ and Seagate RAISE technologies

Key Features and Benefits :

SATA 6 Gb/s interface for easy deployment

Seagate DuraWrite™ lossless data reduction technology

Tunable capacity for performance or capacity-optimised SSD solutions

Seagate Secure options

Power loss data protection circuit

Enterprise-class reliability with 2Mhr. MTBF and a 5-year limited warranty

Specifications :

Standard Model NumbersXA480ME10063
InterfaceSATA 6Gb/s
NAND Flash Type3D TLC
Form Factor2.5 in × 7 mm
Sequential Read (MB/s) Sustained, 128 KB560
Sequential Write (MB/s) Sustained, 128 KB535
Random Read (IOPS) Sustained, 4 KB QD3275,000
Random R70R (IOPS) Sustained. 4KB QD3240,000
Random Write (IOPS) Sustained, 4 KB QD3250,000
Average Read Latency (μs), 4 KB QD155
Average Write Latency (μs), 4 KB QD40
Lifetime Endurance (Drive Writes per Day)3
Total Bytes Written (TB)2,600
Non-recoverable Read Errors per Bits Read1 per 10E17
Mean Time Between Failures (MTBF, hours)20,00,000
Limited Warranty (years)5
Power Management
+5/+12V Overall Average Active Power (W)2.7
Average Idling Power (W)1.1
Temperature, Operating Internal (°C)0°C – 70°C
Temperature, Non-operating (°C)-40°C – 85°C
Temperature Change Rate/Hr, Max (°C)20
Shock, 0.5 ms (Gs)1,000
Height (mm/in, max)7 mm/0.276 in
Width (mm/in, max)70.1 mm/2.76 in
Depth (mm/in, max)100.25 mm/3.947 in
Weight (lb/g)77 g/0.169 lb
Carton Unit Quantity10
