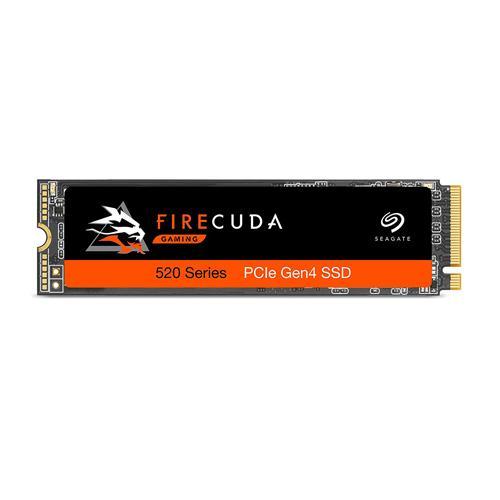

Seagate Firecuda 520 500GB NVMe PCIe X4 Gen4 SSD ZP500GM30002

Best-Fit Applications

  • Creative professional systems
  • High-performance PCs and workstations
Found this product at a lower price?

Seagate Firecuda 520 500GB NVMe PCIe X4 Gen4 SSD ZP500GM30002

Overview :

Seagate FireCuda 520 SSD with PCIe Gen4 ×4 interface is our fastest solid state drive — nearly 45% faster sequential reads/writes than the previous generation. It provides plug-and-play compatibility with all PCIe 4.0 motherboards, and delivers an extreme boost in performance with the latest 3D TLC NAND technology. Upgrading to the FireCuda 520 unlocks Gen4 speed and supplies up to 9× faster sequential reads than SATA SSDs.

  • Leverage sequential read/write performance up to 5,000/4,400 MB/s, and randomread/write up to 760K/700K IOPS.
  • Take advantage of up to 45% more speed than Gen3 M.2 NVMe™ and up to 9×faster sequential reads than SATA SSDs.
  • Utilise an E16 controller that is fully aligned with AMD X570 chipset motherboardsand able to reach up to 5 GB/s reads/4.4 GB/s writes.
  • Easily upgrade to a drive that’s compatible with Gen4 motherboards and fullybackwards compatible with all PCIe 3.0 platforms.
  • Enjoy the latest NAND technology, which provides the most advanced speed anddurability for your money.
  • Choose from multiple capacities (up to 2 TB), and store your gaming library on yourboot drive.
  • Download our free SeaTools™ SSD software to take advantage of drive performancereporting, S.M.A.R.T. attributes, health monitoring, firmware updates, diagnostics,managing logs — and multiple gamer theme options.



Specification :

Standard Model (TCG Pyrite) ZP500GM30002
Interface PCIe Gen4 ×4, NVMe 1.3
NAND Flash Memory 3D TLC
Form Factor M.2 2280-D2
Performance
Sequential Read (Max, MB/s), 128KB1 5,000
Sequential Write (Max, MB/s), 128KB1 2,500
Random Read (Max, IOPS), 4KB QD32 T81 4,30,000
Random Write (Max, IOPS), 4KB QD32 T81 6,30,000
Endurance/Reliability
Total Bytes Written (TB) 850
Mean Time Between Failures (MTBF, hours) 18,00,000
Warranty, Limited (years) 5
Power Management
Active Power, Average (W) 4.6
Idle Power PS3, Average (mW) 12
Low Power L1.2 mode (mW) 2
Environmental
Temperature, Operating Internal (°C) 0 to 70
Temperature, Non-operating (°C) –40 to 85
Shock, Non-operating: 0.5 ms (Gs) 1,500
Special Features
TRIM Yes
S.M.A.R.T. Yes
Halogen-free Yes
RoHS compliance Yes
Physical
Length (mm/in, max) 80.15 mm/3.156 in
Width (mm/in, max) 22.15 mm/0.872 in
Height (mm/in, max) 3.58 mm/0.140 in
Weight (lb/g) 8.0 g/0.017 lb
