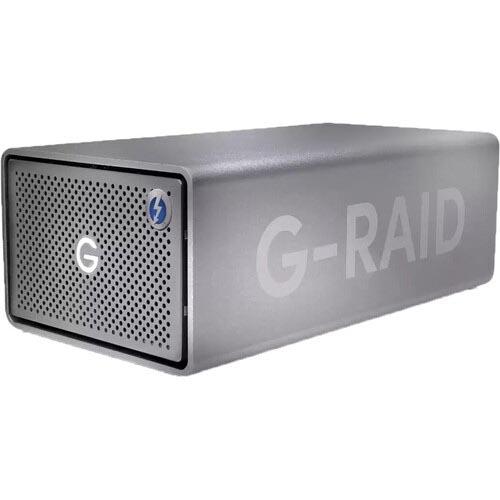

SanDisk Professional G-RAID 2 40TB 2-Bay RAID Array SDPH62H-040T-NBAAD


  • 2 x 20TB Ultrastar Enterprise 3.5″ HDDs
  • 2 x SATA III 3.5″ Drive Bays
  • Thunderbolt 3 | USB-C 3.2 Gen 1 | HDMI
  • Supports RAID 0, 1, and JBOD

Out of stock

Notify me when the item is back in stock.

Found this product at a lower price?

SanDisk Professional G-RAID 2 40TB 2-Bay RAID Array SDPH62H-040T-NBAAD

Overview :

Designed to provide flexibility and reliability for demanding applications, the G-RAID 2 40TB 2-Bay RAID Array from SanDisk Professional is a fast, high-capacity storage solution that supports multi-stream HD, 2K, 4K, and HDR video workflows. Equipped with an overall capacity of 40TB that is made of up 2 x 20TB 7200 rpm Ultrastar Enterprise-class hard drives, the G-RAID 2 delivers data transfer speeds of up to 480 MB/s. In terms of connectivity, this array is equipped with two 40 Gb/s Thunderbolt 3 ports, one 5 Gb/s USB-C port, and one HDMI port. While host connectivity is achieved using one of the Thunderbolt 3 ports or the USB-C port, the second Thunderbolt 3 port remains available for daisy-chaining up to five additional devices, including drives, 4K displays, and more, all through a single cable connection.

SanDisk Professional built the G-RAID 2 with a hardware RAID controller that supports RAID 0, which provides enhanced performance, and RAID 1, which supports 1:1 drive mirroring, although this halves the total capacity. For those who do not need a RAID, JBOD is also available. The system comes preconfigured as RAID 0 and formatted for macOS 10.15 and later, although the system may be reformatted for Windows 10. Included is a 20 Gb/s Thunderbolt 3 cable, a USB-C to USB-A cable, a power cable, and an AC power adapter, while protection is provided by a limited 5-year warranty.

General Features
Enterprise-Class, 7200 rpm Hard Drives Inside
For all your demanding workloads and mission-critical content, you can rely on the power and enhanced reliability of the enterprise-class 7200 rpm Ultrastar hard drives inside.

Daisy-Chaining for up to 5 Additional Devices
With dual Thunderbolt 3 ports, you can conveniently daisy chain up to 5 additional devices to stay connected to multiple drives, 4K displays, and more, through a single connection to your computer.

Built-In Hardware RAID
For maximum performance, the G-RAID 2 comes ready to go in RAID 0 and can be configured to RAID 1 (mirroring) or JBOD for ultimate flexibility.

High-Speed Data Transfers
Quickly back up and move your HD photos and 4K footage with high-speed data transfer rates up to 480 MB/s.

Premium, All-Aluminum Enclosure
With a premium, anodized aluminum enclosure, the G-RAID 2 pairs beautifully with your high-end computer and gives you durable strength you can feel.

Limited 5-Year Warranty
Backed by a limited 5-year warranty, you can be confident in the reliable storage of the G-RAID 2 for years to come.

Specification :

Storage Capacity 40 TB
Included Drives 2 x 20 TB 3.5″ HDD
Initial RAID Configuration RAID 0
Interface SATA III
Rotational Speed 7200 rpm
Number of Bays 2 x 3.5″
Pre-Format APFS
Inputs/Outputs 2 x USB-C Thunderbolt 3 (40 Gb/s)
1 x USB-C 3.0 / 3.1/3.2 Gen 1
1 x HDMI
Compatible Drive Interface SATA III
Form Factor Desktop
Transfer Rates 480 MB/s (Read/Write)
UASP Support No
OS Compatibility macOS 10.15 or Later
Windows 10 or Later
*As of February, 2023: Check with manufacturer for the most up-to-date compatibility
Encryption None
Power Source AC Adapter
Operating Temperature 41 to 95°F / 5 to 35°C
Cooling 1 x Fan
Material of Construction Aluminum
Dimensions 9.88 x 5.12 x 3.58″ / 25.1 x 13 x 9.09 cm
Weight 6.4 lb / 2.9 kg
Packaging Info
Package Weight 8.675 lb
Box Dimensions (LxWxH) 12 x 8.8 x 6.8″


Additional information

Weight 0.1 kg
Storage Capacity

40 TB
