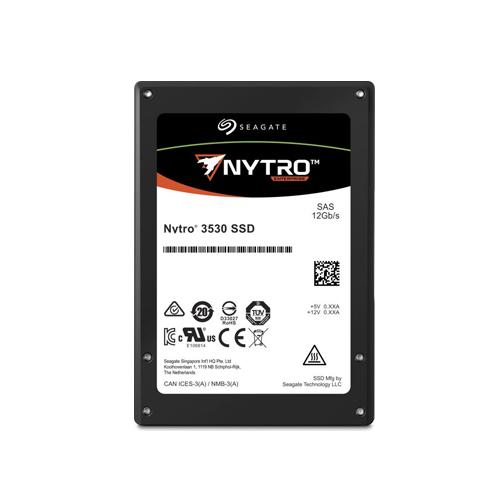

Seagate Nytro 800GB 3530 Light Endurance SAS SSD XS800LE10003



Best-Fit Applications
Server virtualisation
OLTP databases
Software-defined storage
All flash arrays
Caching and tiering

Out of stock

Free shipping on all orders

  • 7 days easy returns
  • Order before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Seagate Nytro 800GB 3530 Light Endurance SAS SSD XS800LE10003

Overview :

The Seagate® Nytro® 3000 SAS SSD Series includes the next generation of high-capacity, high-performance SAS SSDs designed with endurance offerings optimised for demanding enterprise applications and improved TCO.

Enhanced Reliability, Data Protection, and Security
Seagate has decades of enterprise SAS expertise in mission-critical applications. The Nytro 3000 SSD Series helps deliver exceptional data protection and reliability with full internal and external data path protection (T10 DIF), advanced ECC algorithms, media lifecycle management, and other techniques for extending flash memory life. Advanced power-loss data protection helps maintain data integrity in the event of unexpected power interruptions.Advanced security levels to prevent unauthorised access to a drive and safeguard stored data include Seagate Downloads & Diagnostics, TCG-compliant Self-Encrypting Drive and government-grade FIPS/Common Criteria tamper-resistant drive.

Industry-Leading Performance up to 2,100 MB/s
The Nytro 3000 SSD Series delivers ultra-fast, consistent, and easily scalable performance thatsaturates dual 12 Gb/s SAS bandwidth, providing an effective 24 Gb/s interface with dual-portdynamic configurations. By removing the storage bottleneck, overall system and applicationresponsiveness is significantly improved.

High-Capacity Solution With Multiple Endurance Offerings
Enterprise applications have different storage workload requirements. Databases orvirtualisation with a typically mixed read/write workload require the highest random read/writeIOPS, ultra-low latency, and high endurance. Content streaming applications demand highsequential read throughput and high storage density at the lowest cost per gigabyte. The Nytro3000 SSD Series offers an industry-leading range of capacities up to 15 TB in a 2.5-inch formfactor to increase enterprise storage density in data centres. It also enables lower TCO byoffering endurance categories to match cost and performance requirements of all enterprise workloads.

Specification :

Standard Model NumberXS800LE10003
InterfaceDual 12 Gb/s SAS
NAND Flash Type3D eMLC
Form Factor2.5 in × 7 mm
Performance — Single Port 12 Gb\s
Sequential Read (MB/s) Sustained, 128 KB1100
Sequential Write (MB/s) Sustained, 128 KB910
Random Read (IOPS) Sustained, 4 KB2,00,000
Random Write (IOPS) Sustained, 4 KB80,000
Random 30% Write (IOPS) Sustained, 4 KB1,70,000
Performance — Dual Port 12 Gb\s
Sequential Read (MB/s) Sustained, 128 KB2,100
Sequential Write (MB/s) Sustained, 128 KB1,200
Random Read (IOPS) Sustained, 4KB2,30,000
Random Write (IOPS) Sustained, 4KB80,000
Random 30% Write (IOPS) Sustained, 4KB1,70,000
Lifetime Endurance (Drive Writes per Day)3
Total Bytes Written (TB)4,300
Non-recoverable Read Errors per Bits Read1 per 10E18
Annualised Failure Rate (AFR)0.35%
Limited Warranty (years)5
Power Management
+5/+12 V Max Start Current (A)0.80/0.21
Average Idling Power (W)4.4
Height (mm/in, max)7 mm/0.276 in
Width (mm/in, max)70.1 mm/2.76 in
Depth (mm/in, max)100.45 mm/3.955 in
Weight (lb/g)85 g/0.187 lb
Carton Unit Quantity10
Cartons per Pallet / Cartons per Layer90/9
