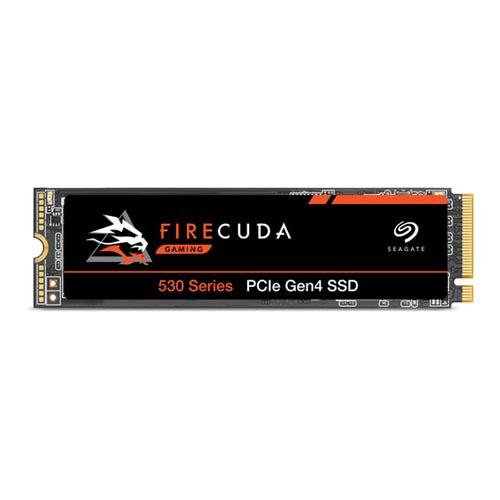

Seagate FireCuda 530 Series 500GB M.2 PCIe 4.0 x4 NVMe SSD ZP500GM3A013


  • 500GB Storage Capacity
  • M.2 2280 NVMe Form Factor
  • PCIe 4.0 x4 Interface
  • Read Speeds up to 7000 MB/s

Out of stock

Notify me when the item is back in stock.

Found this product at a lower price?

Seagate FireCuda 530 Series 500GB M.2 PCIe 4.0 x4 NVMe SSD ZP500GM3A013

Overview :

Speed up performance and expand storage with the 500GB FireCuda 530 M.2 SSD without Heatsink from Seagate. Designed for gaming and content creation, this M.2 2280 SSD features 500GB of 3D TLC NAND NVMe storage. Utilizing a PCIe 4.0 x4 interface, the FireCuda 530 delivers read and write speeds up to 7000 and 3000 MB/s, respectively. Furthermore, this drive supports S.M.A.R.T. and TRIM functions for automatically optimized performance. Capable of 640TB TBW, this drive is built for durable everyday performance. The included 3-year Rescue Data Recovery Services can even help recover lost data.

Poised to Perform
With read and write speeds up to 7000 and 3000 MB/s, this SSD provides snappy performance via a PCIe 4.0 x4 interface. Furthermore, the FireCuda is backward-compatible with PCIe 3.0 motherboards at reduced speeds.

Game and Create Faster
Built for sustained pro-level gaming and accelerated content creation, this drive provides transfer speeds up to two times faster than PCIe 3.0 NVMe SSDs and up to twelve times faster than SATA SSDs.

Optimum Durability
Built with a Seagate-validated E18 controller and 3D TLC NAND memory, the FireCuda 530 provides optimized durability so you can push the limits of your machine.

Ready for Heavy Lifting
Designed to perform under heavy use, this drive features a total bytes written (TBW) rating of 640TB. This means you can write and delete 70% of the drive capacity every day for five years.

500GB Capacity
Store graphics-intensive games and big files without breaking a sweat, thanks to the 500GB storage capacity.

Rescue Services Included
Rest easy with three years of Rescue Data Recovery Services, offering a 95% success rate against unexpected data loss. Please note, this feature may not be available in all countries.

Specification :

Write Speed Maximum: 3000 MB/s 128 KB Files
Sequential: 3000 MB/s 128 KB Files
Random: 700,000 IOPS 4 KB Files
Read Speed Maximum: 7000 MB/s 128 KB Files
Sequential: 7000 MB/s 128 KB Files
Random: 400,000 IOPS 4 KB Files
Drive Type SSD
Form Factor M.2 2280
Flash Memory Type Tri-Level Cell (TLC)
SMART Support Yes
TRIM Support Yes
Reliability / Data Integrity
Endurance (Total Bytes Written) 640 TB
Mean Time Between Failures (MTBF) 1.8 Million Hours
Power Draw 5.8 W (Active)
14.00 mW (Idle)
5.0 mW (Standby)
Storage Shock 1500 G / 0.5 ms
Operating Temperature 32 to 158°F / 0 to 70°C
Storage Temperature -40 to 185°F / -40 to 85°C
Certifications RoHS, as per Manufacturer
Dimensions (W x H x D) 0.87 x 0.09 x 3.16″ / 22.15 x 2.23 x 80.15 mm
Weight 0.3 oz / 7.7 g
Packaging Info
Package Weight 0.15 lb
Box Dimensions (LxWxH) 5.8 x 4.3 x 1.1″


Additional information

Weight 0.1 kg



Max Sequential Read

Max Sequential Write

Memory Components


User Type
