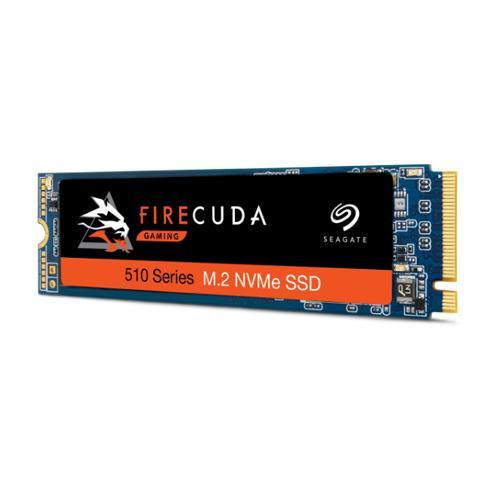

Seagate FireCuda 510 2TB M.2 2280 PCIe G3 x4 NVMe SSD ZP2000GM30001

Best-Fit Applications

  • Gaming PC desktops Gaming PC laptops
  • High-performance PCs and workstations
  • Creative professional systems
Found this product at a lower price?

Seagate FireCuda 510 2TB M.2 2280 PCIe G3 x4 NVMe SSD ZP2000GM30001

Overview :

Built specifically for professional-level gamers, the Seagate® FireCuda® 510 SSD brings the intense speeds, lasting endurance, and large capacity needed to accelerate PC storage performance.

  • NVMe PCIe Gen3 ×4 interface unleashes the speed of NAND and delivers up to 6× faster performance than SATA SSDs
  • Blazing-fast sequential read/writes bring faster load times, faster program installations, and faster processing
  • Ultra-high random read/write IOPS translates to faster program response times and more responsive multiple program multitasking
  • Enhanced dynamic SLC cache with up to 28 GB reserved provides longer bursts of data
  • 1 TB and 2 TB capacities for the storage of huge files and games without the worry of maxing out your drive or partitioning
  • M.2 2280 form factor for massive speed and capacity in a compact package for installation in tight spaces, leaving room for other components
  • Top-tier endurance gives pro-level gamers peace of mind with a 5-year limited warranty and MTBF of 1.8 M hours
  • SeaTools™ SSD enhanced gaming tool with drive management and health monitoring so gamers can tune the drive to their performance needs



Specification :

Specifications 2 TB
Standard Model (TCG Pyrite) ZP2000GM30001
Interface PCIe G3 ×4, NVMe 1.3
NAND Flash Memory 3D TLC
Form Factor M.2 2280-D2
Performance
Sequential Read (Max, MB/s), 128KB1 3,450
Sequential Write (Max, MB/s), 128KB1 3,200
Random Read (Max, IOPS), 4KB QD32 T81 4,85,000
Random Write (Max, IOPS), 4KB QD32 T81 6,00,000
Endurance/Reliability
Total Bytes Written (TB) 2,600
Mean Time Between Failures (MTBF, hours) 18,00,000
Warranty, Limited (years) 5
Power Management
Active Power, Average (W) 6
Idle Power PS3, Average (mW) 26.4
Low Power L1.2 mode (mW) 2
Environmental
Temperature, Operating Internal (°C) 0 to 70
Temperature, Non-operating (°C) –40 to 85
Shock, Non-operating: 0.5 ms (Gs) 1,500
Special Features
TRIM Yes
S.M.A.R.T. Yes
Halogen-free Yes
RoHS compliance Yes
Physical
Length (mm/in, max) 80.15 mm/3.156 in
Width (mm/in, max) 22.15 mm/0.872 in
Height (mm/in, max) 3.58 mm/0.140 in
Weight (lb/g) 8.7 g/0.019 lb
