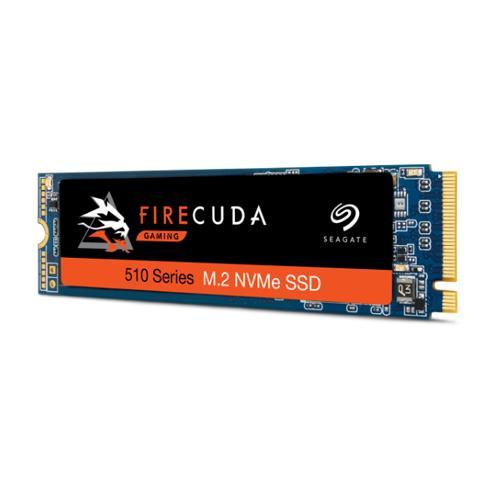

Seagate FireCuda 510 1TB M.2 2280 PCIe G3 x4 NVMe SSD ZP1000GM30001

Best-Fit Applications

Gaming PC desktops Gaming PC laptops
High-performance PCs and workstations
Creative professional systems

Seagate FireCuda 510 1TB M.2 2280 PCIe G3 x4 NVMe SSD ZP1000GM30001

Overview :

Built specifically for professional-level gamers, the Seagate® FireCuda® 510 SSD brings the intense speeds, lasting endurance, and large capacity needed to accelerate PC storage performance.

NVMe PCIe Gen3 ×4 interface unleashes the speed of NAND and delivers up to 6× faster performance than SATA SSDs

Blazing-fast sequential read/writes bring faster load times, faster program installations, and faster processing

Ultra-high random read/write IOPS translates to faster program response times and more responsive multiple program multitasking

Enhanced dynamic SLC cache with up to 28 GB reserved provides longer bursts of data

1 TB and 2 TB capacities for the storage of huge files and games without the worry of maxing out your drive or partitioning

M.2 2280 form factor for massive speed and capacity in a compact package for installation in tight spaces, leaving room for other components

Top-tier endurance gives pro-level gamers peace of mind with a 5-year limited warranty and MTBF of 1.8 M hours

SeaTools™ SSD enhanced gaming tool with drive management and health monitoring so gamers can tune the drive to their performance needs

Specification :

Specifications	1 TB
Standard Model (TCG Pyrite)	ZP1000GM30001
Interface	PCIe G3 ×4, NVMe 1.3
NAND Flash Memory	3D TLC
Form Factor	M.2 2280-D2
Performance
Sequential Read (Max, MB/s), 128KB1	3,450
Sequential Write (Max, MB/s), 128KB1	3,200
Random Read (Max, IOPS), 4KB QD32 T81	6,20,000
Random Write (Max, IOPS), 4KB QD32 T81	6,00,000
Endurance/Reliability
Total Bytes Written (TB)	1,300
Mean Time Between Failures (MTBF, hours)	18,00,000
Warranty, Limited (years)	5
Power Management
Active Power, Average (W)	5.5
Idle Power PS3, Average (mW)	20
Low Power L1.2 mode (mW)	2
Environmental
Temperature, Operating Internal (°C)	0 to 70
Temperature, Non-operating (°C)	–40 to 85
Shock, Non-operating: 0.5 ms (Gs)	1,500
Special Features
TRIM	Yes
S.M.A.R.T.	Yes
Halogen-free	Yes
RoHS compliance	Yes
Physical
Length (mm/in, max)	80.15 mm/3.156 in
Width (mm/in, max)	22.15 mm/0.872 in
Height (mm/in, max)	3.58 mm/0.140 in
Weight (lb/g)	8.5 g/0.018 lb

Additional information

Weight	0.1 kg
Brand	Seagate SSD
Capacity	1 TB SSD
Interface	NVMe SSD Gen 3
Max Sequential Read	Up to 3450 MBps
Max Sequential Write	Up to 3200 MBps
Memory Components	3D TLC
User Type	Consumer SSD
Warranty	5 Years
