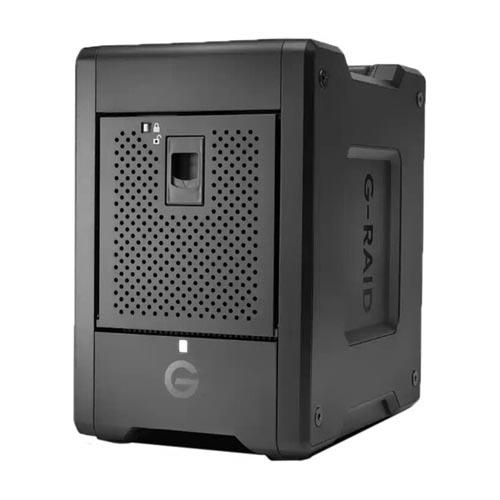

SanDisk Professional G-RAID Shuttle 4 72TB 4-Bay Thunderbolt 3 RAID Array (4 x 18TB) SDPH34H-072T-NBAAB


  • 4 x 18TB 3.5″ 7200 rpm HDDs
  • 4 x Drive Bays
  • Dual Thunderbolt 3 / USB 3.2 Gen 2 Ports
  • Supports RAID 0, 1, 5, and 10

Out of stock

Notify me when the item is back in stock.

Found this product at a lower price?

SanDisk Professional G-RAID Shuttle 4 72TB 4-Bay Thunderbolt 3 RAID Array (4 x 18TB) SDPH34H-072T-NBAAB

Overview :

Consolidate storage and streamline your workflow with the G-RAID Shuttle 4 72TB 4-Bay Thunderbolt 3 RAID Array from SanDisk. Utilizing four 3.5″ drive bays, this RAID array houses a 18TB 7200 rpm HDD in each bay. Preconfigured in RAID 5, this array also supports RAID 0, 1, and 10 modes. The Thunderbolt 3 interface provides read speeds up to 1000 MB/s and write speeds up to 1100 MB/s, and can also be used with 10 Gb/s USB 3.2 Gen 2. Two Thunderbolt 3 ports can be used to daisy chain up to five devices and support up to 85W of power delivery. The SanDisk G-RAID Shuttle 4 comes pre-formatted for macOS 10.15 and later but may be used with Windows 10 and later via a simple reformat.

Thunderbolt 3
Thunderbolt 3 is a hardware interface that utilizes the reversible USB-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.2 Gen 2 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.

Ideal Capacity for Demanding Workflows
Boasting a 72TB capacity, the G-RAID Shuttle 4 device delivers high performance storage to save all your favorite 4K or 8K high dynamic range (HDR) and high frame rate (HFR) footage in a single location.

Removable UltraStar Enterprise-Class 7200 rpm Hard Drives
For all your demanding workloads and mission-critical footage, you can depend on the power and enhanced reliability of four removable UltraStar enterprise-class 7200 rpm hard drives.

Up to 640 MB/s Sustained Read Speeds In RAID 5
With read speeds up to 640 MB/s and write speeds up to 800 MB/s in default RAID 5, the G-RAID SHUTTLE 4 device delivers the performance you need to quickly ingest content and natively edit footage to make changes in real-time.

Transportable Design
Built for easy travel between your on-site production location and to the studio for post-production, the G-RAID Shuttle 4 device delivers powerful, transportable storage to help improve your workflow efficiency, wherever you are.

Optimized Support for Multi-Stream Workflows
Built for multi-stream 4K and 8K production workflows, the G-RAID Shuttle 4 offers the bandwidth to support multi-camera editing in real time, render footage with multi-layer effects, and quickly export in an efficient workflow.

Built-in Hardware RAID
For maximum performance, the G-RAID Shuttle 4 device comes in RAID 5 out of the box and supports RAID 0, 1, and 10 to provide a versatile and flexible storage solution.

Daisy-Chaining for up to 5 Additional Devices
With dual Thunderbolt 3 ports, you can conveniently daisy chain up to five additional devices, keeping you connected to multiple drives, 4K displays and more, through a single connection to your computer.

USB Power Delivery
With support for up to 85W of power delivery through the USB-C port, this drive can charge your compatible MacBook or MacBook Pro without having to take a separate MacBook charger out of your bag.

Limited 5-Year Warranty
Backed by a limited 5-year warranty, you can be confident in the reliable storage of the G-RAID Shuttle for years to come.

Specification :

Storage Capacity 72 TB
Included Drives 4 x 18 TB 3.5″ HDD
Initial RAID Configuration RAID 5
Rotational Speed 7200 rpm
Number of Bays 4 x 3.5″
Pre-Format APFS
Inputs/Outputs 2 x USB-C Thunderbolt 3 (40 Gb/s)
Compatible Drive Interface SATA III
Form Factor Desktop
RAID RAID 0, 1, 10, 5
Transfer Rates 1000 MB/s (Read)
1100 MB/s (Write)
640 MB/s (Read in RAID 5)
800 MB/s (Write in RAID 5)
UASP Support Yes
OS Compatibility Windows 10 or Later
macOS 10.15 or Later
*As of February, 2023: Check with manufacturer for the most up-to-date compatibility
Encryption None
Security Features Kensington Security Slot
AC Input Power 100 to 240 VAC, 50 Hz at 2 to 4 A
Power Source AC Adapter
Operating Temperature 41 to 95°F / 5 to 35°C
Cooling 1 x Fan
Dimensions 10.51 x 9.76 x 6.85″ / 266.95 x 247.9 x 173.99 mm
Weight 16.5 lb / 7.5 kg
Packaging Info
Package Weight 23.625 lb
Box Dimensions (LxWxH) 15.1 x 14.5 x 13.1″


Additional information

Weight 0.1 kg
Storage Capacity

72 TB
