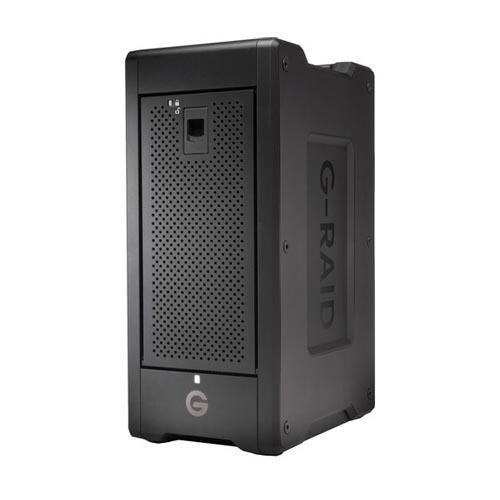

SanDisk Professional 160TB G-RAID Shuttle 8 8-Bay RAID Array SDPH48H-160T-NBAAB
Designed so content creators can have a premium solution for their demanding workflows, whether on location or in the studio, the 160TB G-RAID Shuttle 8 8-Bay RAID Array from SanDisk Professional delivers powerful RAID storage in a design that’s easy to transport. Equipped with an overall capacity of 160TB, that is made of up 8 x 20TB 7200 rpm Ultrastar Enterprise-class hard drives, the Shuttle 8 delivers read speeds of up to 1690 MB/s and write speeds of up to 1490 MB/s, which is more than enough to drive multi-stream 4K, 8K, and VR workflows. In terms of connectivity, this array is equipped with two 40 Gb/s Thunderbolt 3 ports and one 10 Gb/s USB-C port. While host connectivity is achieved using one of the Thunderbolt 3 ports, or the USB-C port, the second Thunderbolt 3 port remains available for daisy-chaining up to five additional devices, including drives, 4K displays, and more, all through a single cable connection.
SanDisk Professional built the G-RAID Shuttle 8 with a hardware RAID controller that supports RAID 0, 1, 5, 6, 10, 50, and 60, each of which provides performance, data redundancy, or a combination of both. For those who do not need a RAID, JBOD is also available. The system comes preconfigured as RAID 5 and formatted for macOS 10.15 and later, although the system may be reformatted for other RAID modes, as well as Windows 10. Included is a Thunderbolt 3 cable and an IEC power cable, while protection is provided by a limited 5-year warranty.
Colossal Capacity, Transportable Design
With a capacity of 160TB of high-powered RAID storage in an easy-to-transport design, content creators get a premium solution for their demanding workflows, whether on location or in the studio.
High-Speed Data Transfers
With read speeds of up to 1690 MB/s, write speeds of up to 1490 MB/s, and support for multi-stream 4K, 8K, and VR workflows, you can quickly move or copy all your media so you can spend less time waiting and more time creating with high-speed data transfer using the 40 Gb/s Thunderbolt 3 or 10 Gb/s USB-C ports.
Built-In Hardware RAID
For balanced performance, the G-RAID Shuttle 8 comes formatted for macOS 10.15 and later and is configured as RAID 5. It also supports RAID 0, 1, 6, 10, 50, 60, and JBOD for greater flexibility and may be reformatted for Windows 10.
Removable, Reliable 7200 rpm Ultrastar Enterprise-Class Drives
For all your demanding workloads and mission critical footage, you can depend on the power and enhanced reliability of eight removable Ultrastar Enterprise-class 7200 rpm hard drives inside.
Daisy-Chaining for up to 5 Additional Devices
With dual Thunderbolt 3 ports, you can conveniently daisy chain up to 5 additional devices, keeping you connected to multiple drives, 4K displays, and more, through a single connection to your computer.
USB Power Delivery
With support for up to 85W of USB Power Delivery through the USB-C port, this drive can charge your compatible MacBook or MacBook Pro without having to take a separate MacBook charger out of your bag.
Limited 5-Year Warranty
Backed by a limited 5-year warranty, you can be confident in the reliable storage of the G-RAID Shuttle 8 for years to come.
|Storage Capacity||160 TB|
|Included Drives||8 x 20 TB 3.5″ HDD|
|Initial RAID Configuration||RAID 5|
|Rotational Speed||7200 rpm|
|Number of Bays||8 x 3.5″|
|Inputs/Outputs||2 x USB-C Thunderbolt 3 (40 Gb/s)|
|Compatible Drive Interface||SATA III|
|RAID||RAID 0, 1, 10, 5, 50, 6, 60, JBOD|
|Transfer Rates||1690 MB/s (Read in RAID 5)|
|1490 MB/s (Write in RAID 5)|
|OS Compatibility||macOS 10.15 or Later|
|Windows 10 or Later|
|*As of February, 2023: Check with manufacturer for the most up-to-date compatibility|
|AC Input Power||100 to 240 VAC, 50 / 60 Hz at 2 to 4 A|
|Power Source||AC Adapter|
|Operating Temperature||41 to 95°F / 5 to 35°C|
|Cooling||2 x Fans|
|Dimensions||15.16 x 9.65 x 6.89″ / 38.51 x 24.51 x 17.5 cm|
|Weight||27.3 lb / 12.4 kg|
|Package Weight||34.205 lb|
|Box Dimensions (LxWxH)||20.4 x 16.1 x 12.6″|
