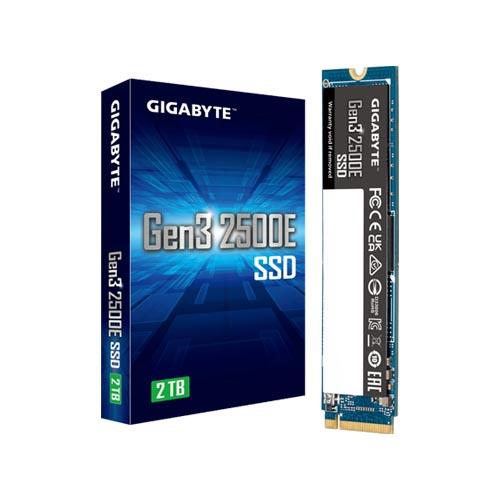

Gigabyte Gen3 2500E 2TB PCIe 3.0×4 NVMe SSD G325E2TB
Overview :
A worthy choice for your PC upgrade
GIGABYTE Gen3 2500E SSD adopts Phison’s controller and high-quality 3D NAND, delivers up to 2400 MB/s sequential read and 2000 MB/s sequential write performance. By utilizing Host Memory Buffer technology, the SSD controller can access the host DRAM without performance loss. Furthermore, GIGABYTE Gen3 2500E SSD features TRIM, SMART, and Over-Provision support to secure your data and perform stably.
+ PCIe 3.0×4, NVMe1.3 interface
+ Sequential Read Speed : up to 2,400 MB/s
+ Sequential Write speed : up to 2,000 MB/s
+ HMB (Host Memory Buffer) supported
+ TRIM & S.M.A.R.T supported
+ Energy-efficient
Breaking the Barriers of SATA Limitations (2TB)
Outstanding performance
GIGABYTE Gen3 2500E SSD provides performance for your daily computing tasks, boast of best controller & 3D NAND flash.
Sequential read speeds up to 2400 MB/s
Sequential write speeds up to 2000 MB/s
GIGABYTE Gen3 2500E SSD gives you faster data transferring experience compared to 2.5″ SATA solid state drive.
Host Memory Buffer (HMB)
The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.
Power Saving While Operating
Comparing with regular PCIe 3.0 x4 SSD, GIGABYTE Gen3 2500E SSD reduces about 40%+ power while operating. Power consumption of the GIGABYTE Gen3 2500E SSD is notably improved.
SSD Tool Box
The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.
Error Recovery Technology
The GIGABYTE exclusive technology uses special algorithm to enable Intelligent NAND Flash management, and enhance decoding capability. This optimize error recovery in NAND flash for superior storage reliability.
Media Scan
GIGABYTE exclusive Media Scan technology can automatically monitor the health status of NAND flash in the background and handle unhealthy flash blocks without disrupting regular operation.
Specification :
| Interface | PCIe 3.0×4, NVMe1.3 interface |
| Form Factor | M.2 2280 |
| Total Capacity | 2000GB |
| External DDR Cache | N/A |
| Sequential Read speed | Up to 2400 MB/s |
| Sequential Write speed | Up to 2000 MB/s |
| Dimension | 22 x 2.3 x 80 mm |
| Mean time between failure (MTBF) | 1.5 million hours |
| Max. Operating Power | Read: 2300mW |
| Write: 2250mW | |
| Power Consumption (Idle, PS3) | 30mW |
| Power Consumption(PS4, L1.2) | 5mW |
| Temperature (Operating) | 0°C to 70°C |
| Temperature (Storage) | -40°C to 85°C |
