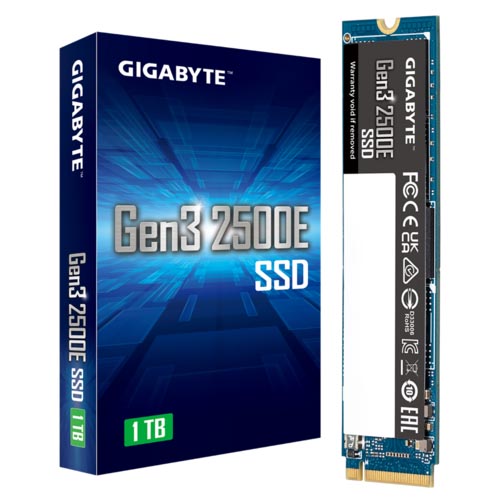

Gigabyte Gen3 2500E 1TB PCIe 3.0×4 NVMe SSD G325E1TB

Overview :

GIGABYTE Gen3 2500E SSD adopts Phison’s controller and high-quality 3D NAND, delivers up to 2400 MB/s sequential read and 1800 MB/s sequential write performance. By utilizing Host Memory Buffer technology, the SSD controller can access the host DRAM without performance loss.

Host Memory Buffer
The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.

Power Saving While Operating
Comparing with regular PCIe 3.0 x4 SSD, GIGABYTE Gen3 2500E SSD reduces about 40%+ power while operating. Power consumption of the GIGABYTE Gen3 2500E SSD is notably improved.

SSD Tool Box
The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.

Reliability You Can Trust
GIGABYTE Gen3 2500E SSD possess both high data transferring speed and enhanced endurance, providing durable MTBF* of 1.5 million hours and 3 years or 240TBW

Specification :

Interface	PCIe 3.0×4, NVMe1.3 interface
Form Factor	M.2 2280
Total Capacity	1000GB
External DDR Cache	N/A
Sequential Read speed	Up to 2400 MB/s
Sequential Write speed	Up to 1800 MB/s
Random Read IOPS	Up to 130K
Random Write IOPS	Up to 350K
Dimension	22 x 2.3 x 80 mm
Mean time between failure (MTBF)	1.5 million hours
Power Consumption (Active)	Average R : 2670mW
	Average W : 3200mW
Power Consumption (Idle)	Idle : 30mW
	L1.2 < 5mW
Temperature (Operating)	0°C to 70°C
Temperature (Storage)	-40°C to 85°C
Warranty	5 Years

Additional information

Weight	0.1 kg
Brand	Gigabyte SSD
Capacity	1 TB SSD
Interface	NVMe PCI-e SSD
Max Sequential Read	Up to 2400 MBps
Max Sequential Write	Up to 1800 MBps
User Type	Consumer SSD
Warranty	3 Years
