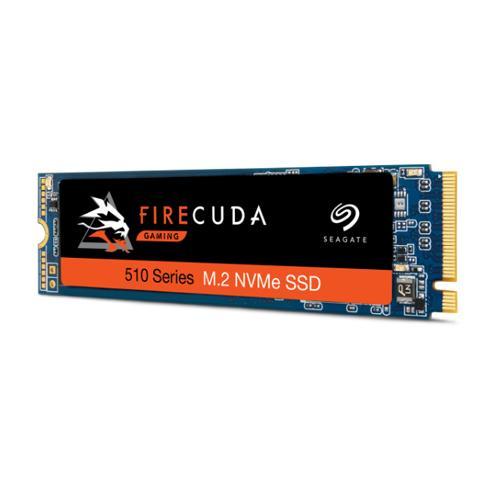

Seagate FireCuda 510 500GB M.2 2280 PCIe G3 x4 NVMe SSD ZP500GM30001

Best-Fit Applications

  • Gaming PC desktops Gaming PC laptops
  • High-performance PCs and workstations
  • Creative professional systems
Found this product at a lower price?

Seagate FireCuda 510 500GB M.2 2280 PCIe G3 x4 NVMe SSD ZP500GM30001

Overview :

Built specifically for professional-level gamers, the Seagate® FireCuda® 510 SSD brings the intense speeds, lasting endurance, and large capacity needed to accelerate PC storage performance.

  • NVMe PCIe Gen3 ×4 interface unleashes the speed of NAND and delivers up to 6× faster performance than SATA SSDs
  • Blazing-fast sequential read/writes bring faster load times, faster program installations, and faster processing
  • Ultra-high random read/write IOPS translates to faster program response times and more responsive multiple program multitasking
  • Enhanced dynamic SLC cache with up to 28 GB reserved provides longer bursts of data
  • 1 TB and 2 TB capacities for the storage of huge files and games without the worry of maxing out your drive or partitioning
  • M.2 2280 form factor for massive speed and capacity in a compact package for installation in tight spaces, leaving room for other components
  • Top-tier endurance gives pro-level gamers peace of mind with a 5-year limited warranty and MTBF of 1.8 M hours
  • SeaTools™ SSD enhanced gaming tool with drive management and health monitoring so gamers can tune the drive to their performance needs


Specification :

Specifications 500 GB
Standard Model (TCG Pyrite) ZP500GM30001
Interface PCIe G3 ×4, NVMe 1.3
NAND Flash Memory 3D TLC
Form Factor M.2 2280-D2
Sequential Read (Max, MB/s), 128KB1 3,450
Sequential Write (Max, MB/s), 128KB1 2,500
Random Read (Max, IOPS), 4KB QD32 T81 4,20,000
Random Write (Max, IOPS), 4KB QD32 T81 6,00,000
Total Bytes Written (TB) 650
Mean Time Between Failures (MTBF, hours) 18,00,000
Warranty, Limited (years) 5
Power Management
Active Power, Average (W) 4.7
Idle Power PS3, Average (mW) 16
Low Power L1.2 mode (mW) 2
Temperature, Operating Internal (°C) 0 to 70
Temperature, Non-operating (°C) –40 to 85
Shock, Non-operating: 0.5 ms (Gs) 1,500
Special Features
S.M.A.R.T. Yes
Halogen-free Yes
RoHS compliance Yes
Length (mm/in, max) 80.15 mm/3.156 in
Width (mm/in, max) 22.15 mm/0.872 in
Height (mm/in, max) 3.58 mm/0.140 in
Weight (lb/g) 8.0 g/0.017 lb
