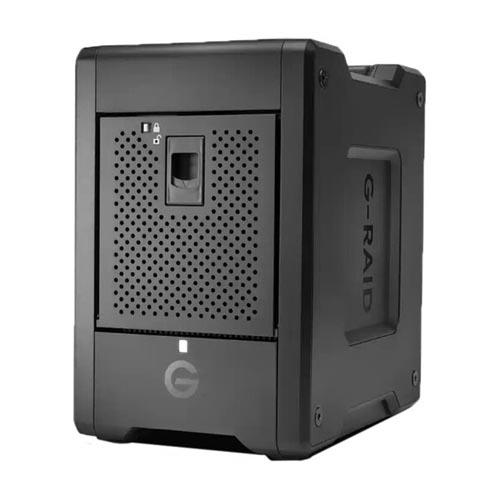

SanDisk Professional G-RAID Shuttle 4 24TB 4-Bay Thunderbolt 3 RAID Array (4 x 6TB) SDPH34H-024T-NBAAB
Overview :
Consolidate storage and streamline your workflow with the G-RAID Shuttle 4 24TB 4-Bay Thunderbolt 3 RAID Array from SanDisk. Utilizing four 3.5″ drive bays, this RAID array houses a 6TB 7200 rpm HDD in each bay. Preconfigured in RAID 5, this array also supports RAID 0, 1, and 10 modes. The Thunderbolt 3 interface provides read speeds up to 1000 MB/s and write speeds up to 1100 MB/s, and can also be used with 10 Gb/s USB 3.2 Gen 2. Two Thunderbolt 3 ports can be used to daisy chain up to five devices and support up to 85W of power delivery. The SanDisk G-RAID Shuttle 4 comes pre-formatted for macOS 10.15 and later but may be used with Windows 10 and later via a simple reformat.
Thunderbolt 3
Thunderbolt 3 is a hardware interface that utilizes the reversible USB-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.2 Gen 2 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.
Ideal Capacity for Demanding Workflows
Boasting a 24TB capacity, the G-RAID Shuttle 4 device delivers high performance storage to save all your favorite 4K or 8K high dynamic range (HDR) and high frame rate (HFR) footage in a single location.
Removable UltraStar Enterprise-Class 7200 rpm Hard Drives
For all your demanding workloads and mission-critical footage, you can depend on the power and enhanced reliability of four removable UltraStar enterprise-class 7200 rpm hard drives.
Up to 640 MB/s Sustained Read Speeds In RAID 5
With read speeds up to 640 MB/s and write speeds up to 800 MB/s in default RAID 5, the G-RAID SHUTTLE 4 device delivers the performance you need to quickly ingest content and natively edit footage to make changes in real-time.
Transportable Design
Built for easy travel between your on-site production location and to the studio for post-production, the G-RAID Shuttle 4 device delivers powerful, transportable storage to help improve your workflow efficiency, wherever you are.
Optimized Support for Multi-Stream Workflows
Built for multi-stream 4K and 8K production workflows, the G-RAID Shuttle 4 offers the bandwidth to support multi-camera editing in real time, render footage with multi-layer effects, and quickly export in an efficient workflow.
Built-in Hardware RAID
For maximum performance, the G-RAID Shuttle 4 device comes in RAID 5 out of the box and supports RAID 0, 1, and 10 to provide a versatile and flexible storage solution.
Daisy-Chaining for up to 5 Additional Devices
With dual Thunderbolt 3 ports, you can conveniently daisy chain up to five additional devices, keeping you connected to multiple drives, 4K displays and more, through a single connection to your computer.
USB Power Delivery
With support for up to 85W of power delivery through the USB-C port, this drive can charge your compatible MacBook or MacBook Pro without having to take a separate MacBook charger out of your bag.
Limited 5-Year Warranty
Backed by a limited 5-year warranty, you can be confident in the reliable storage of the G-RAID Shuttle for years to come.
Specification :
| Drives | |
| Storage Capacity | 24 TB |
| Included Drives | 4 x 6 TB 3.5″ HDD |
| Initial RAID Configuration | RAID 5 |
| Rotational Speed | 7200 rpm |
| General | |
| Number of Bays | 4 x 3.5″ |
| Pre-Format | APFS |
| Inputs/Outputs | 2 x USB-C Thunderbolt 3 (40 Gb/s) |
| Compatible Drive Interface | SATA III |
| Form Factor | Desktop |
| RAID | RAID 0, 1, 10, 5 |
| Transfer Rates | 1000 MB/s (Read) |
| 1100 MB/s (Write) | |
| 640 MB/s (Read in RAID 5) | |
| 800 MB/s (Write in RAID 5) | |
| UASP Support | Yes |
| Software | |
| OS Compatibility | Windows 10 or Later |
| macOS 10.15 or Later | |
| *As of February, 2023: Check with manufacturer for the most up-to-date compatibility | |
| Security | |
| Encryption | None |
| Security Features | Kensington Security Slot |
| Electrical | |
| AC Input Power | 100 to 240 VAC, 50 Hz at 2 to 4 A |
| Power Source | AC Adapter |
| Environmental | |
| Operating Temperature | 41 to 95°F / 5 to 35°C |
| Physical | |
| Cooling | 1 x Fan |
| Dimensions | 10.51 x 9.76 x 6.85″ / 266.95 x 247.9 x 173.99 mm |
| Weight | 16.8 lb / 7.6 kg |
| Packaging Info | |
| Package Weight | 22.8 lb |
| Box Dimensions (LxWxH) | 13.9 x 13.8 x 12″ |
