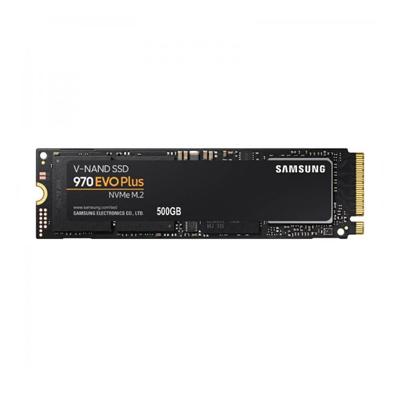

Samsung 970 EVO Plus 500GB M.2 PCIe NVMe Internal SSD MZ-V7S500BW
Always Evolving SSD
The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for unbeatable computing.
Level up Performance
The 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s*, up to 57% faster than the 970 EVO**. The latest V-NAND technology — which brings greater NAND performance and higher power efficiency — along with optimized firmware, a Phoenix controller, and Intelligent TurboWrite boost speed.
The next advancement in NVMe SSD. The 970 EVO Plus fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung’s innovative technology empowers you with the capacity to do more and accomplish more.
The new standard in sustainable performance. Get up to 1,200 TBW* with a 5-year limited warranty** for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung’s quality.
* TBW: Terabytes Written. Warrantied TBW for 970 EVO Plus: 150 TBW for 250GB model, 300 TBW for 500GB model, 600 TBW for 1TB model, 1,200 TBW for 2TB model.
** 5-years or TBW, whichever comes first. For more information on the warranty, please find the enclosed warranty statement in the package.
Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops.
Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.
|Interface||PCIe Gen 3.0 x 4, NVMe 1.3|
|Storage Memory||Samsung V-NAND 3-bit MLC|
|Dimension (WxHxD)||80.15 x 22.15 x 2.38 (mm)|
|Cache Memory||Samsung 1GB Low Power DDR4 SDRAM|
|Controller||Samsung Phoenix Controller|
|GC (Garbage Collection)||Auto Garbage Collection Algorithm|
|Encryption Support||AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)|
|WWN Support||Not supported|
|Device Sleep Mode Support||Yes|
|Read||Up to 3,500 MB/s|
|Write||Up to 3,200 MB/s|
|Random Read (4KB, QD32)||Up to 480,000 IOPS|
|Random Write (4KB, QD32)||Up to 550,000 IOPS|
|Reliability (MTBF)||1.5 Million Hours Reliability (MTBF)|
|Operating Temperature||0 – 70 ℃ Operating Temperature|
|Shock||1,500 G & 0.5 ms (Half sine)|
|Form Factor||M.2 (2280)|
